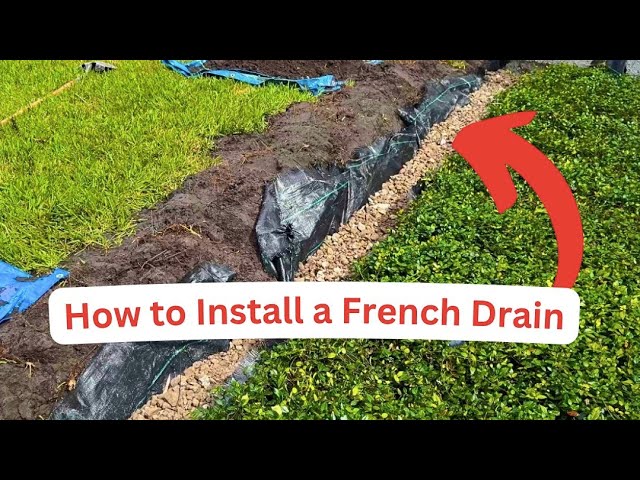

French Drain Installation
About This Project
Install a French drain to manage and redirect surface and subsurface water away from a property, typically to prevent basement flooding or landscape erosion.
Tools & Materials
Stinger
MARSHALLTOWN 1000 ft. White Twisted Mason's String Line 629
MARSHALLTOWN Line Level 16554-HD
Measuring Tape
Anvil 47 in. Wood Handle Carbon Steel Digging Shovel 77470-939
DIABLO 1-1/8 in. x 31 in. x 36 in. Rebar Demon SDS-Max 4-Cutter Full Carbide Head Hammer Drill Bit (1-Piece) DMAMX1280
Stinger
A stinger is a type of bar tool used in cocktail making and bartending. It is a long-handled utensil typically made of stainless steel, with a small disc-shaped end that is used to stir and mix ingredients in a cocktail glass. The stinger is an essential tool for creating perfectly mixed cocktails, as it allows bartenders to gently combine ingredients without disturbing the delicate balance of flavors. The stinger is particularly useful for cocktails that require a gentle touch, such as martinis or other stirred drinks. It is also commonly used to layer ingredients in a cocktail, creating visually appealing and distinct layers of flavor. The long handle of the stinger allows bartenders to reach the bottom of tall glasses or mixing glasses, ensuring that all ingredients are thoroughly mixed. One notable characteristic of the stinger is its versatility. While it is primarily used for stirring cocktails, it can also be used to muddle ingredients, such as herbs or fruit, in the bottom of a glass. This allows bartenders to extract maximum flavor from fresh ingredients, adding depth and complexity to their cocktails. In conclusion, the stinger is a versatile and essential tool for bartenders and cocktail enthusiasts alike. Its ability to gently mix ingredients, layer flavors, and muddle fresh ingredients makes it a valuable addition to any bar toolkit. Whether you are a professional bartender or a home mixologist, the stinger is sure to enhance your cocktail-making skills and elevate your drink creations to the next level.
MARSHALLTOWN 1000 ft. White Twisted Mason's String Line 629
This Marshalltown 1,000 ft. White Twisted Mason's String Line is ideal for staking out construction sites for concrete, brick, block or landscaping layouts. This rope isn't affected by mortar, oil and
MARSHALLTOWN Line Level 16554-HD
The MARSHALLTOWN Line Level's lightweight design eliminates line sag. This product ensures you always have a level line to follow during all masonry projects. This masonry tool comes with break-resistant
Measuring Tape
Accurate measurements in a snap.
Anvil 47 in. Wood Handle Carbon Steel Digging Shovel 77470-939
Discover the Unparalleled Performance of the Anvil 47 in. Digging Shovel. Are you seeking a digging shovel that combines durability, strength, and reliable performance. Look no further than the Anvil Digging Shovel. Crafted with a laser-cut blade made of high-quality carbon steel, it effortlessly slices through soil, roots, and debris, making it an ideal tool for all your lawn and garden projects. What sets this shovel apart is the head, which is fully tempered for exceptional strength and durability. This means it can withstand the toughest digging tasks with ease and longevity. The 47 in. wood handle is not only functional but visually appealing as well, thanks to its varnished finish. This coating not only adds to its appearance but also provides protection against the elements, ensuring your shovel stays in top condition for years to come. This tool comes with a 5-year manufacturer warranty.
DIABLO 1-1/8 in. x 31 in. x 36 in. Rebar Demon SDS-Max 4-Cutter Full Carbide Head Hammer Drill Bit (1-Piece) DMAMX1280
Diablo’s revolutionary range of SDS-Plus and SDS-Max Rebar Demon 4-cutter full carbide head hammer drill bits is the most durable, fastest and coolest range of solutions on the market. Rebar Demon drill
Steps
Mark the Drain Path
60 minutesUse stakes to mark the center line of your French drain trench. Run a string line between the stakes, tensioned tightly. Ensure the string line has a consistent downward slope of approximately 1/4 inch per linear foot towards the planned discharge area to facilitate water flow. You can check the slope using a line level or a laser level.
Watch: Assess and Plan the Drainage System
Excavate the Trench
480 minutesDig the trench along the string line, starting from the discharge end and working towards the collection point. The trench should be approximately 12-18 inches wide and at least 18-24 inches deep to accommodate the perforated pipe, gravel, and soil. Maintain the consistent 1/4 inch per foot slope throughout the trench. Use a shovel and a digging bar. Periodically check the depth and slope with your measuring tape and line level.
Watch: Dig the Trench with Proper SlopeLay Landscape Fabric
120 minutesUnroll landscape fabric and lay it along the bottom of the trench, extending it up the sides. Ensure there's enough overlap to wrap the gravel and pipe later. The fabric acts as a filter, preventing soil from clogging the drainage system. Cut the fabric to size as needed.
Watch: Line the Trench with Landscape FabricAdd Base Gravel Layer
180 minutesSpread a 4-6 inch layer of clean, washed gravel (typically 3/4 inch crushed stone) evenly over the landscape fabric at the bottom of the trench. This layer provides a drainage base and supports the perforated pipe. Ensure the gravel layer also follows the desired slope.
Watch: Add a Base Layer of Gravel
Position the Perforated Pipe
60 minutesPlace the 4-inch diameter perforated drain pipe on the gravel base. Ensure the pipe is centered in the trench and that the perforations (holes) are facing downwards to effectively collect subsurface water. Connect sections of pipe using appropriate couplings if necessary. The pipe should continue the established slope.
Watch: Install Perforated Drainage Pipes
Fill with Gravel
240 minutesAdd more clean, washed gravel (3/4 inch crushed stone) around and over the perforated pipe. Fill the trench until the gravel level is about 6 inches below the original ground surface. This gravel layer is the primary drainage medium. Ensure it completely encases the pipe.
Watch: Cover Pipe with Gravel
Wrap with Landscape Fabric
60 minutesPull the edges of the landscape fabric that were folded up the sides of the trench over the top of the gravel. This creates a filter envelope that keeps soil out of the gravel while allowing water to pass through. Overlap the fabric generously to ensure no gaps.
Watch: Wrap Fabric and Backfill TrenchBackfill the Trench
180 minutesAdd the excavated soil back into the trench on top of the landscape fabric. Fill the trench to the original ground level. Create a slight crown or slope away from the drain path to direct surface water towards the drain inlet or the ground surface around it. Lightly compact the soil.
Watch: Cover the Trench
Connect to Discharge Point
30 minutesThe end of the French drain pipe should lead to a suitable discharge location, such as a storm sewer, dry well, ditch, or lower-lying area of the property. Ensure this connection is secure and allows for free flow of water. If connecting to existing drainage, use appropriate fittings.
Watch: Establish Water Discharge Point
Test the System
30 minutesOnce the backfilling is complete and the discharge is connected, test the system. Pour water into the beginning of the French drain (or into a designated inlet if you created one). Observe if water flows freely through the pipe and discharges effectively at the end. Check for any areas where water might be pooling or not draining as expected.
Watch: System Testing and VerificationCommon Problems
While marking the path or excavating, you accidentally hit an underground utility line (electrical, gas, water, communication). This is a serious safety hazard and can cause significant damage or injury.
Solution: 1. Immediately stop all digging. 2. If you suspect a gas line, evacuate the area and call your local emergency services (e.g., 911 or your local gas company's emergency number). 3. For other utilities, call 811 (or your local "Call Before You Dig" service) and inform them of the incident. Follow their instructions carefully. 4. Do not attempt to repair the line yourself.
Prevention: Always call 811 (or your local "Call Before You Dig" service) a few days before you plan to start digging. They will mark the approximate locations of underground utility lines. Hand-dig carefully within 18-24 inches of any marked lines to avoid hitting them.
The sides of your excavated trench collapse, especially in loose, sandy, or very wet soil, making it difficult to maintain the trench shape and posing a safety risk.
Solution: 1. If the trench is shallow (less than 2 feet), gently re-dig the collapsed sections, making the trench sides more sloped (at an angle) rather than perfectly vertical. 2. For deeper trenches, you may need to widen the trench opening at the top to create a more gradual slope. 3. Immediately remove any loose soil from the bottom of the trench.
Prevention: Excavate in sections, not leaving large, unsupported lengths of trench open for extended periods. In very unstable soil, consider a slightly wider trench with gently sloped sides (a 'V' shape) rather than perfectly vertical walls. Work on a dry day if possible, as wet soil is more prone to collapse.
The trench bottom isn't consistently sloped, leading to sections where water can pool instead of draining efficiently, or the trench is too shallow/deep in places. This will prevent the French drain from working properly.
Solution: 1. Use your string line, line level, and measuring tape to re-check the slope from the start to the end of your drain path. 2. Identify areas that are too high or too low. 3. Carefully remove soil from high spots with your shovel, or add compacted base gravel to low spots, constantly re-checking with your level and string line until a consistent downward slope (typically 1-2% or 1-2 feet of fall per 100 feet of run) is achieved. 4. Use a shovel to smooth out any uneven sections.
Prevention: Before excavating, meticulously plan and mark your slope using stakes, a string line, and a line level. During excavation, regularly stop and check the depth and slope of the trench bottom using your measuring tape, string line, and level to ensure consistency.
The flexible perforated pipe gets kinked during installation, restricting water flow, or the drainage holes are facing upwards, which prevents efficient water collection from the ground.
Solution: 1. Carefully unroll the pipe completely in the trench and allow it to relax before covering it with gravel. 2. If a kink occurs, gently stretch the pipe to remove it. If the kink is severe and damages the pipe, you may need to cut out the damaged section and use a suitable coupling (if you have one for this type of drain pipe) to join the pieces. 3. Rotate the pipe so the perforated holes are facing downwards towards the bottom of the trench (this is the most common and effective orientation for subsurface drainage).
Prevention: Unroll the perforated pipe completely in the trench before adding gravel. Ensure the pipe is oriented with the perforations facing the bottom of the trench. Always check for kinks or improper orientation before burying the pipe.
You don't have enough gravel to properly embed and cover the perforated pipe, or you've used a gravel type that is too fine and might clog the system over time, like landscape gravel with small rocks and dirt.
Solution: 1. If you run out of gravel, immediately stop work and purchase more of the correct type (3/4 inch 'clean crushed gravel', as specified in your materials list, or similar washed aggregate). Avoid substituting with sand or dirt. 2. If you suspect you've used the wrong type (e.g., gravel with too much sand or dirt), remove the improperly placed gravel and replace it with clean, washed aggregate that allows for good water flow and prevents clogging.
Prevention: Carefully calculate the amount of gravel needed before starting the project. Measure the dimensions of your trench (length x width x depth of gravel layers) and use an online calculator or consult your gravel supplier to ensure you purchase enough. Always double-check that you are buying 'clean' or 'washed' gravel to prevent fine particles from clogging the drain.
After installation, water discharges from the French drain but then pools around the discharge point or causes erosion in your yard, defeating the purpose of redirecting water.
Solution: 1. Re-evaluate the discharge location. The water needs to be directed to an area where it can safely soak into the ground (e.g., a downhill slope away from structures, a dedicated rain garden, or a storm drain if permitted). 2. If pooling, extend the discharge pipe further away from the house or create a larger, gravel-filled basin around the pop-up emitter to help dissipate the water. 3. If erosion is occurring, consider placing large, flat rocks or riprap around the discharge area to slow the water flow and prevent soil washout. You might also need to create a slightly depressed swale to guide the water away.
Prevention: Thoroughly plan your discharge point before starting excavation. Ensure it is downhill from your home and any other structures, and that the ground naturally slopes away from the discharge area. Observe how water naturally flows in your yard during a heavy rain to find the best spot. Consider options like a dry well, rain garden, or connecting to an existing storm drain (check local regulations) to manage the discharge effectively.
Frequently Asked Questions
What are the most essential tools I'll need for this French drain project, and are there any specialized tools I should consider renting?
You'll definitely need a sturdy digging shovel, measuring tape, and a wheelbarrow for moving excavated soil and gravel. For long trenches or difficult soil, renting a trenching machine can significantly reduce the physical effort and time required, making the project much more manageable.
What safety precautions should I take before I start digging, especially regarding underground utilities?
Always call 811 (or your local equivalent) a few days before you plan to dig to have underground utility lines marked; this is crucial for your safety and to avoid costly damage. Wear appropriate personal protective equipment, including heavy-duty gloves, eye protection, and steel-toed boots, and be aware of potential tripping hazards in the work area.
How much time should I realistically budget for installing a French drain, and is it truly a beginner-friendly project?
The estimated time for a French drain installation is around 3 days, but this can vary greatly depending on the length of the drain, the soil type, and whether you're hand-digging or using machinery. While the steps are straightforward for a beginner, the project is physically demanding due to the excavation and material handling, so plan for adequate breaks.
What are the most common mistakes people make when installing a French drain, and how can I avoid them?
A common mistake is not ensuring a consistent downhill slope (typically 1-2% grade) in the trench, which is essential for proper water flow; use string lines and a line level to guide your excavation. Another error is failing to properly wrap the perforated pipe and gravel with landscape fabric, leading to premature clogging from silt and soil.
How important is the discharge point for a French drain, and what are my options for where the water goes?
The discharge point is critically important; if water isn't effectively redirected away from your property, the drain won't solve your problem. Options include leading the pipe to a lower-lying area on your property (e.g., a garden bed, ravine), connecting to a dry well, or using a pop-up emitter (like the one listed) that releases water safely away from foundations and property lines.
What kind of maintenance does a French drain require after installation?
French drains are generally low-maintenance, but periodic checks are recommended. Ensure the discharge point remains clear of leaves, debris, or overgrown vegetation that could obstruct water flow. If you notice the system isn't draining effectively, it might be an indication of sediment buildup, which could require flushing the pipe or inspecting the landscape fabric.
